self service hotel

automatic reception

The system is designed for hotels and boarding houses in which there will be no 24-hour reception or the reception will be open only for a few hours a day.

also check:

automatic reception

- for operating hotels

how it works and how you can mount a self service hotel ?
Through the website, the guest reserves and pays for the stay.
He receives a one-time PIN code which will be able to open the hotel door and the rented room.
He can arrive at any time of the day at night.

Basic system functions:
- opening the door with a PIN or proximity card
- turning on the voltage after inserting the card into the holder on the wall of the room
- limiting heating and turning off air-conditioning if a window is open in the room
- if the room is not rented, heating can be reduced via the Internet
- the Hotel_M program can be used to block a PIN or a card

system description

without automation.pdf

with automation.pdf

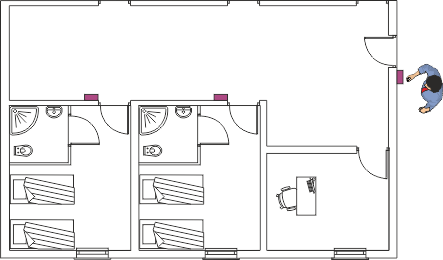

The guest opens the building's front door with a PIN code.

	keyboard card reader

opening the door with a PIN code

e.g. 8024 and the #
sign in case of a mistake *

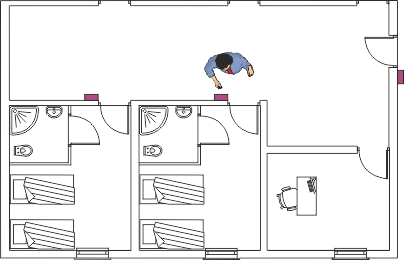

The same code opens the room door.

a card is prepared in the room during the entire stay the guest will open the door of the building and the rented room

After the stay, he should leave the card in the room

if the guest takes the card, it can be blocked immediately using the Hotel_M program

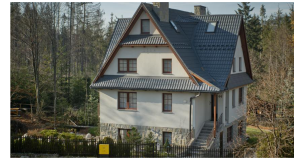

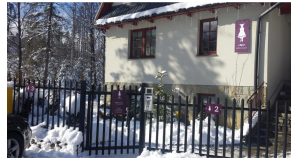

"Willa Gusia" in Zakopane.

Self service hotel managed remotely from Warsaw.
The system installed in 2015.
Currently, installations operate in a dozen or so small ones hotels in Poland and Germany.

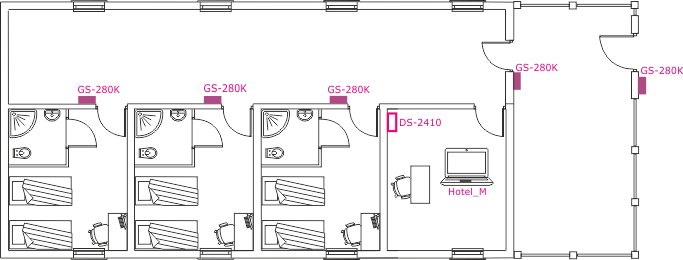

Maintenance-free hotel - rooms without automation - just opening the door

GS-280K	GS-270K



DS-2410 controller for 8 doors	Hotel_M

The door must have:

- a fixed knob from the outside
- a door handle from the inside
- an insert opened with a key reversing the lock latch
- in the electro-catch frame

Rooms with automation - a self service hotel

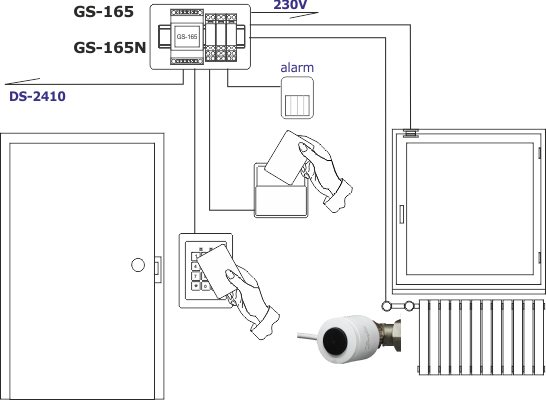

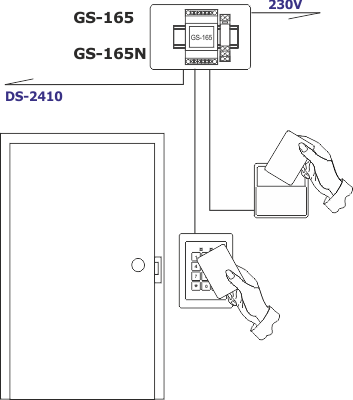

standard version of automation	full version of automation



the door can be opened by card or PIN after inserting the card into the holder, the voltage is turned on the voltage will only be turned on by the card that opens the room door you cannot use another card or business card because there is a card reader in the hole	if a window is open in the room, the controller will limit the heating to 10 ° C you can remotely limit heating if the room is not rented alarm in each room is switched off by inserting the card into the holder An electric strike with an "open door" switch can be installed in the entrance door

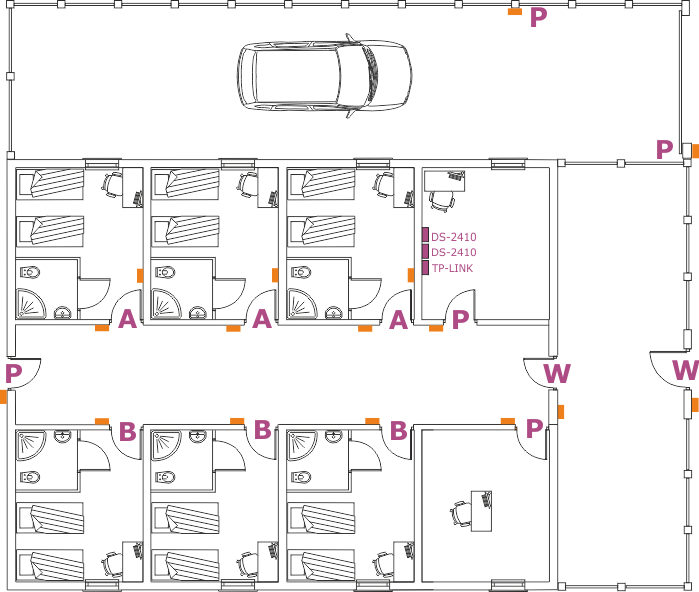

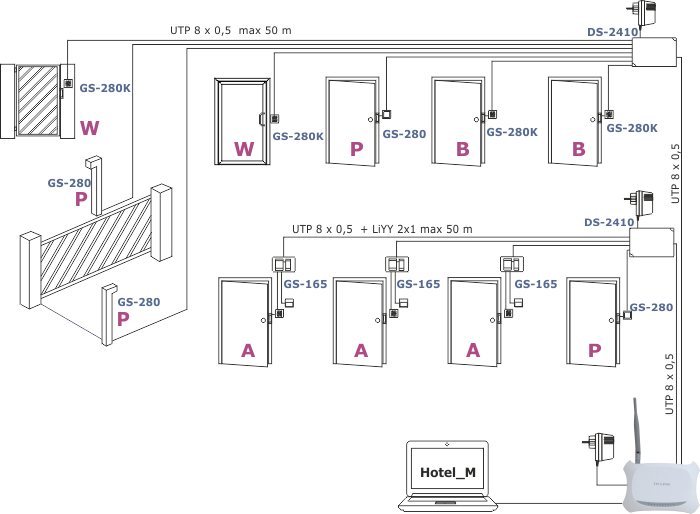

	A	rooms with automation GS-165 GS-165N
	B	rooms without automation GS-280K GS-270K
	W	entrance to the building GS-280K GS-270K
	P	other doors opened only by card GS-280 GS-270
		DS-2410 controller with 230 / 12V 2A power supply

Staff cards can open all doors

The system can be expanded by adding more room groups
from DS-2410 controller and GS controllers (max 200 doors)

keyboard card readers

GS-280K

GS-270K

holder with temperature sensor

DS-2410

card readers

GS-280

GS-270

The door must have an NC type electric strike mounted (closed without voltage connected)
The door should have a knob on the outside and the door handle on the inside.
Evacuation in the event of a fire is provided and no evacuation buttons are needed.
We recommend leaving mechanical locks with a key opening.
In emergency situations (e.g. prolonged 230V power outage) it will be possible to open the door with a key.
An electric strike with an "open door" switch can be installed in the entrance door
